Reeman · Serving and delivery

Reeman Flash

Four-tray serving robot with a 20 kg payload per level

trays: 4 × 20 kg
runtime: 11 h
laser navigation: 25 m
weight: 62 kg

Free on-site trial and return-on-investment calculation.

About the model

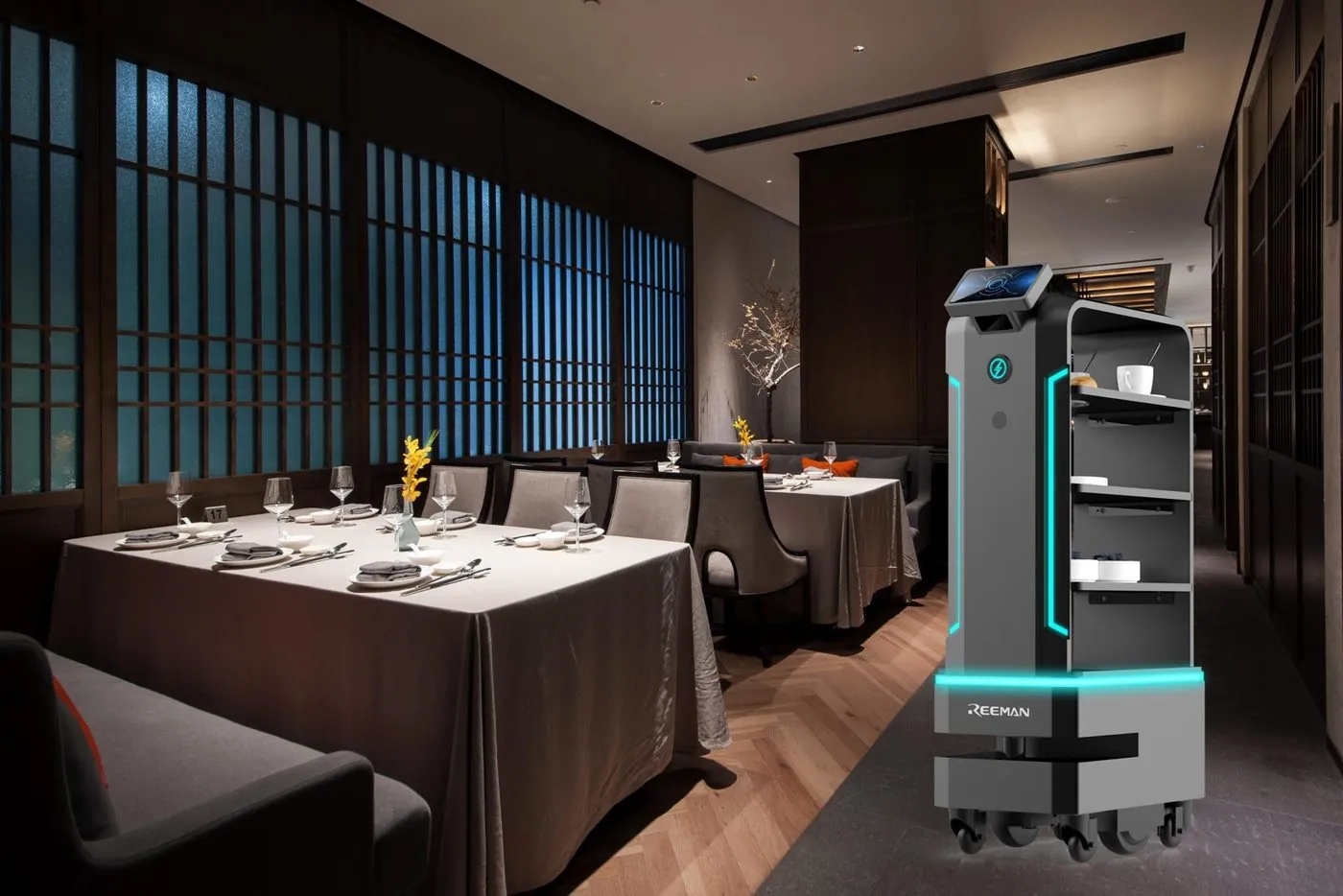

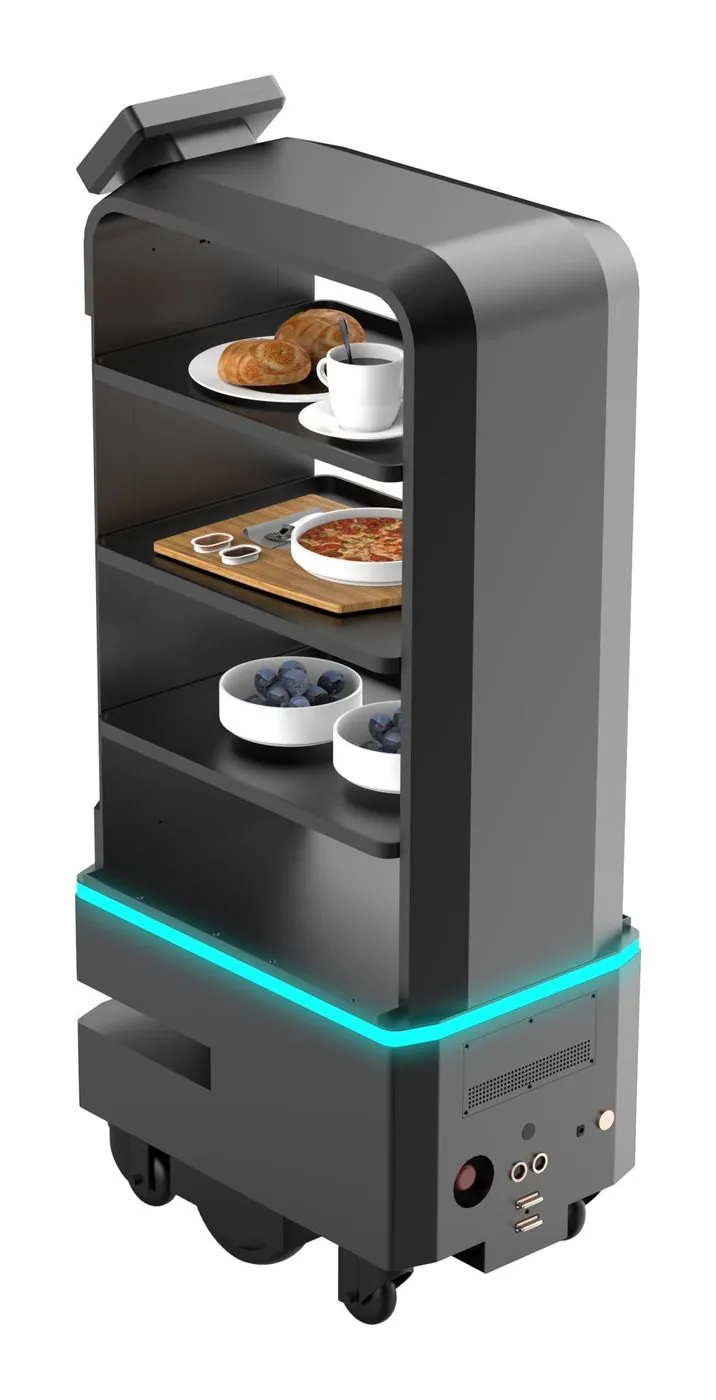

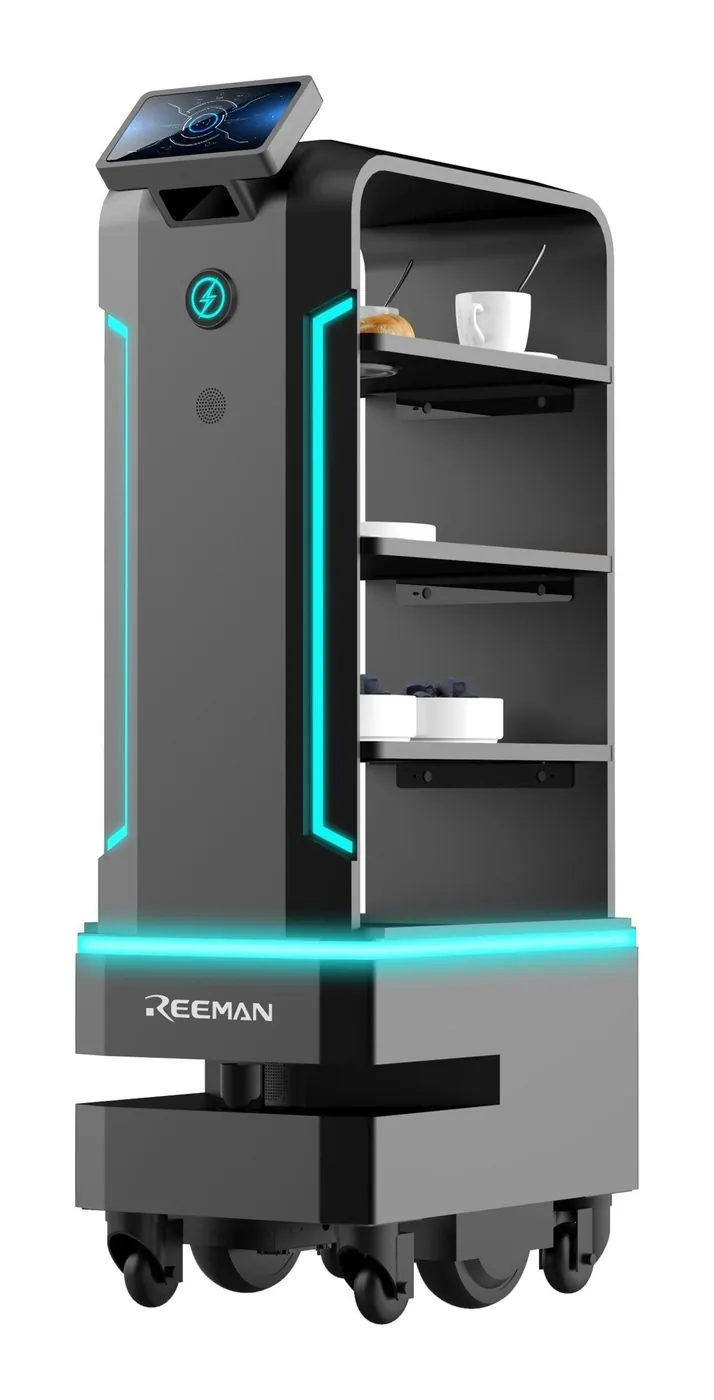

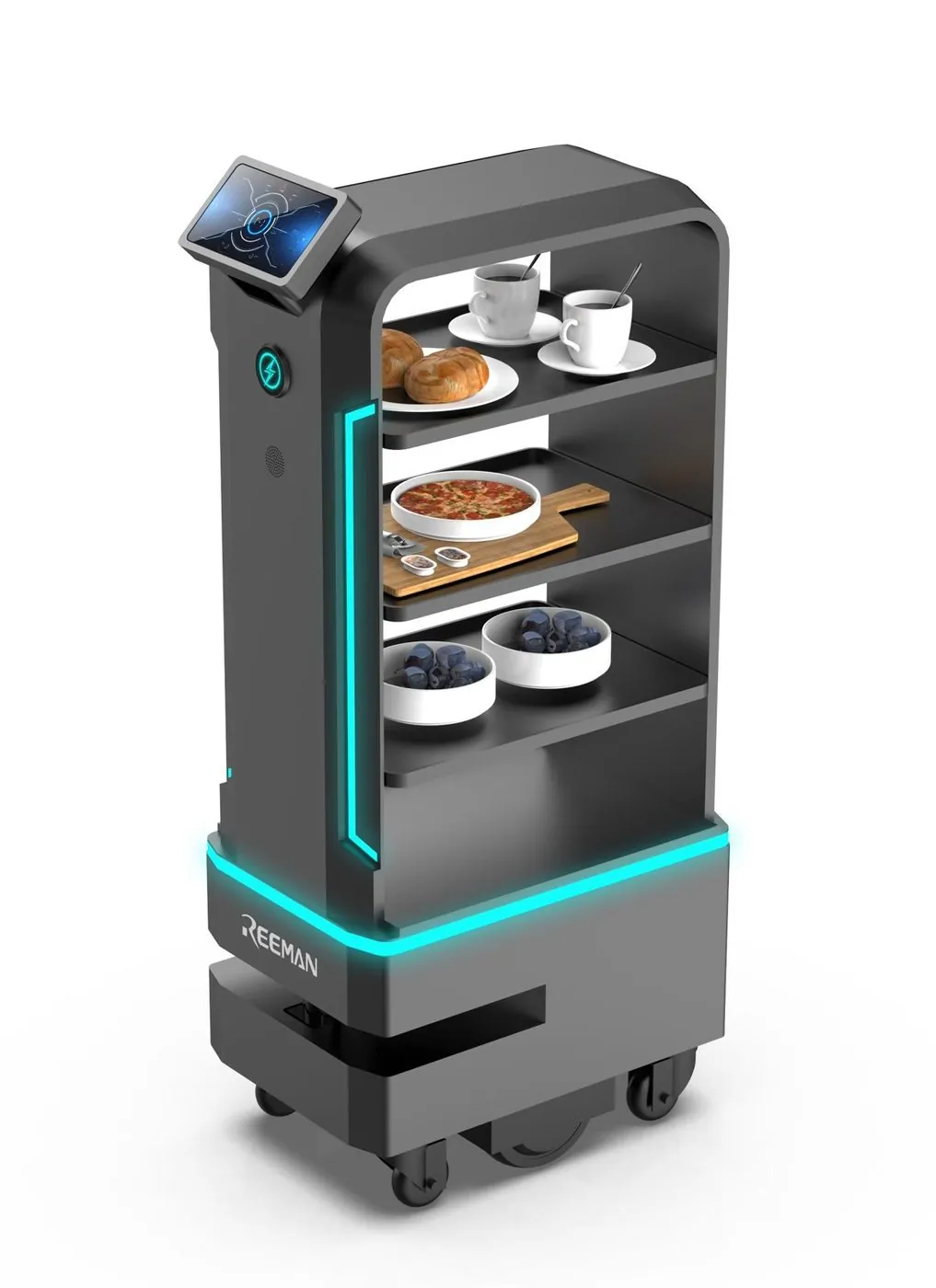

Flash is a sheet-metal serving robot with four quick-release trays, suited to restaurants, hotels, cafés, bars, shopping centres, hospitals and factories. As an option, it calls the lift and opens doors by itself, so it can also deliver between floors.

Four 335 × 465 mm trays, 20 kg per level
Trays can be removed without tools
Optional lift and door control
25 m laser navigation, turning on the spot

Specifications

Technical data

General
Model designation	FBOT18S
Operating system	Android 5.1 or later
Dimensions (L × W × H)	540 × 360 × 1,216 mm
Net weight	62 kg
Display	7-inch, 1024 × 600
Connectivity	Wi-Fi
Serving
Tray size	335 × 465 mm (4 levels)
Tray spacing	175 / 190 / 190 / 170 mm
Tray payload	20 kg / level
Trays	quick-release
Voice messages	customisable
Battery
Battery	LiFePO4 25.6 V / 25 Ah (640 Wh)
Charging time	6 h (automatic charging)
Runtime	11 h
Movement and environment
Navigation	25 m laser navigation, automatic obstacle avoidance
Climbing gradient	5°
Turning radius	0 (turns on the spot)
Lift and doors	optional automatic control
Operating conditions	5–40 °C, humidity 5–85%
