Reeman · Intralogistics (AMR)
Reeman Fly Boat AGV
Low-profile 300 kg transport robot with optional lifting platform
- load capacity
- 300 kg
- height
- 317 mm
- fully loaded
- 8 h
- weight
- 65 kg
Free on-site trial and return-on-investment calculation.
About the model

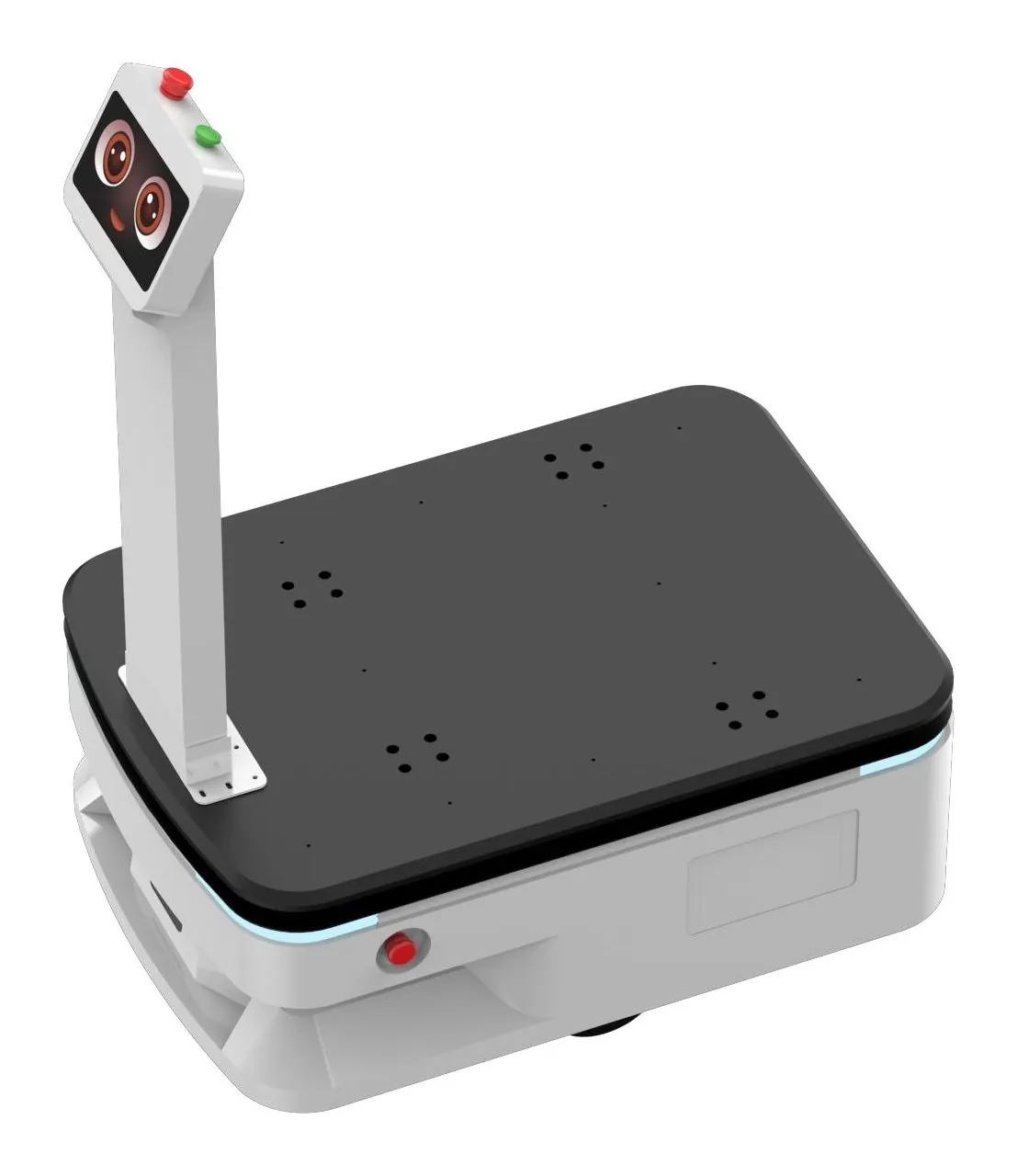

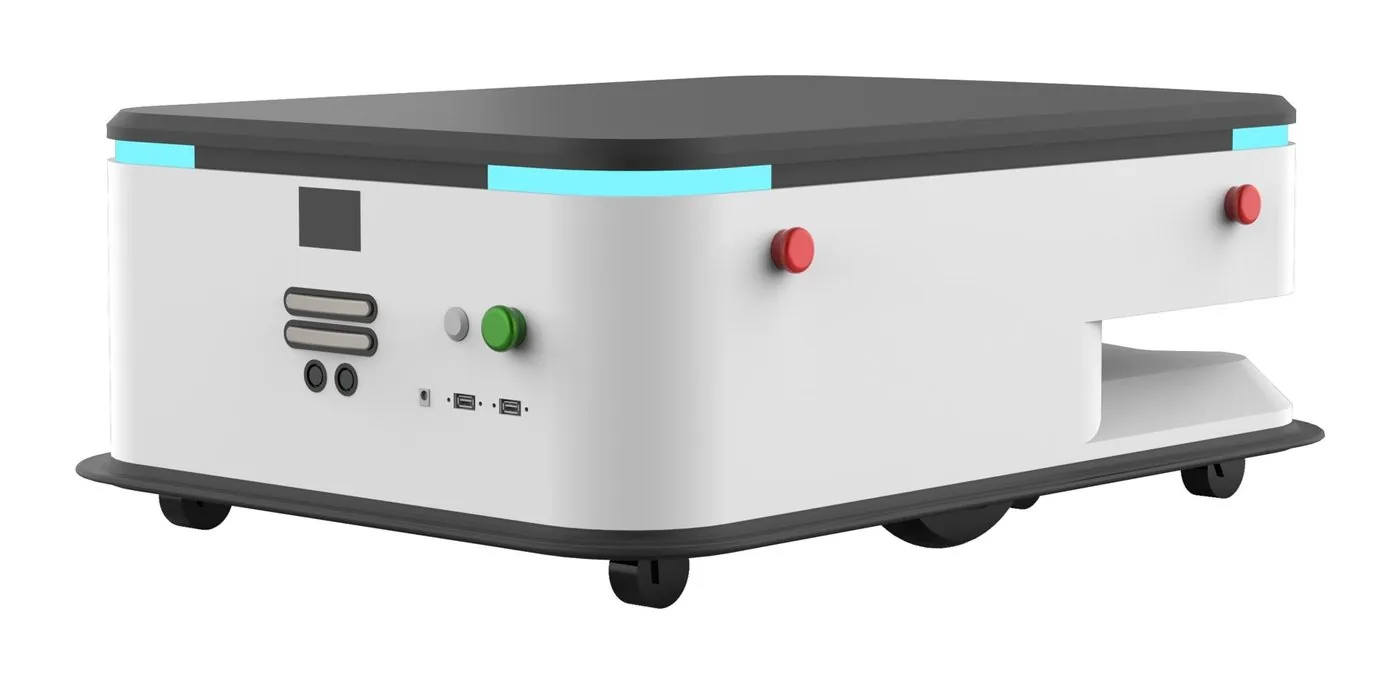

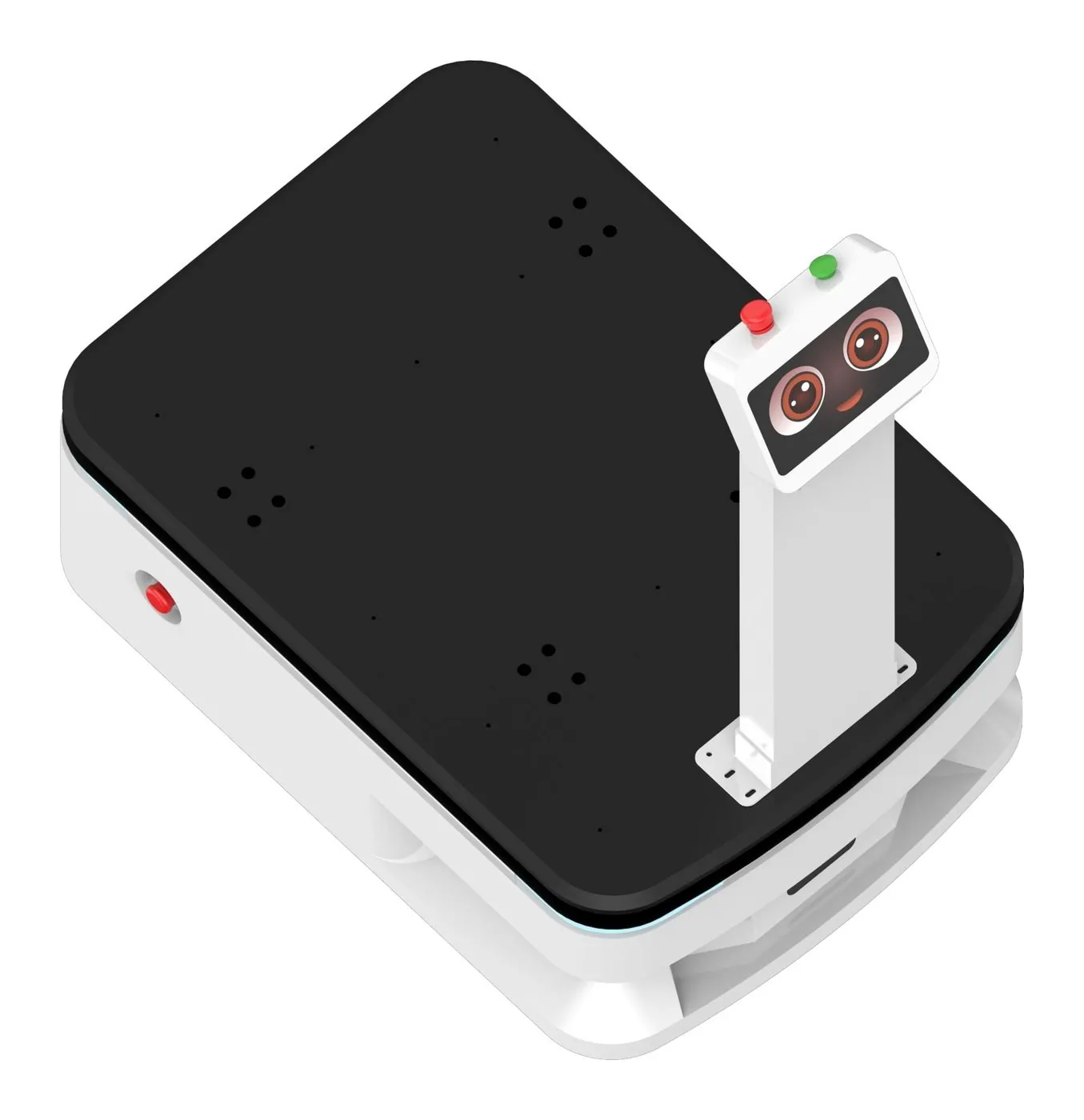

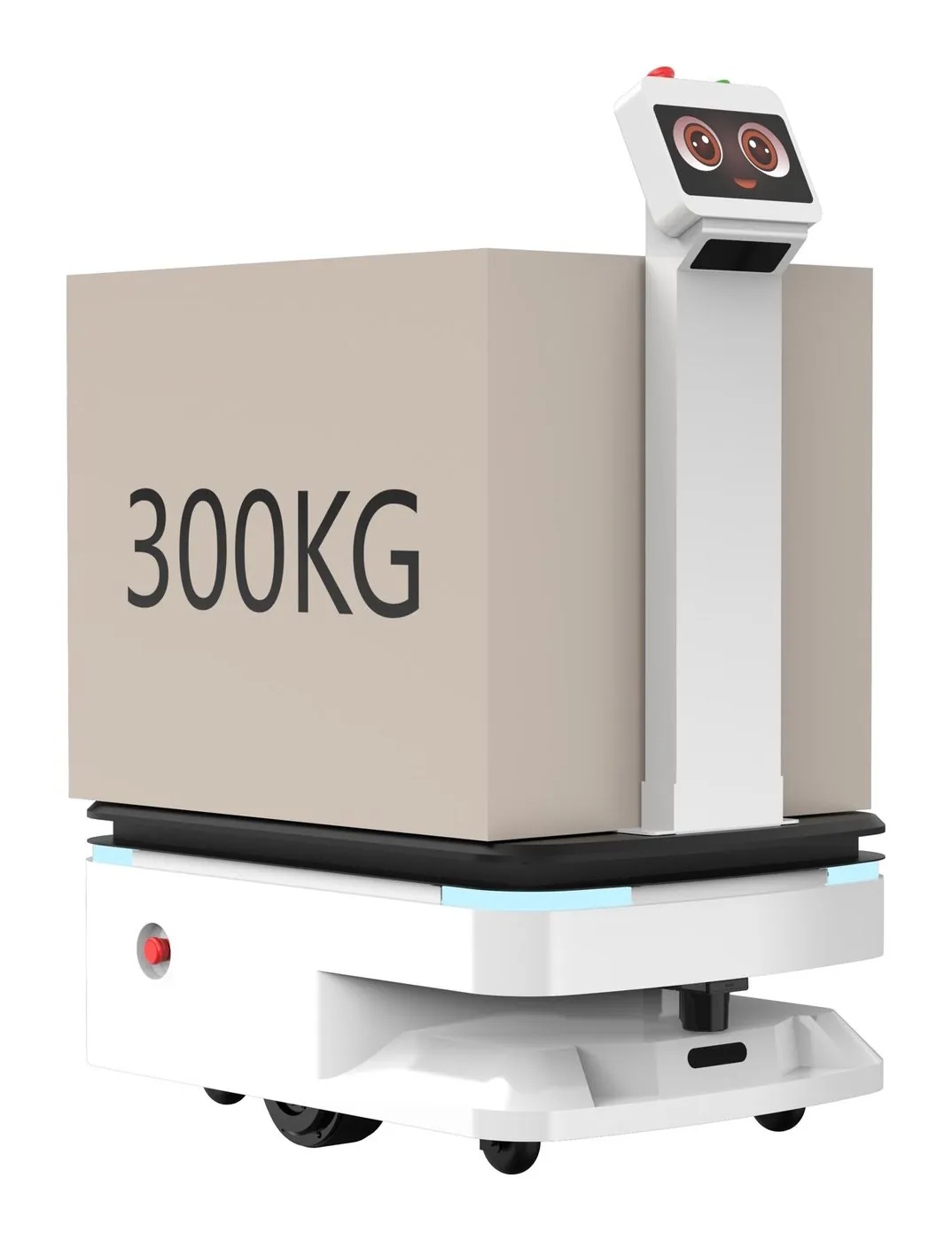

Fly Boat AGV is a low-profile transport robot, 317 mm high, for carrying loads of up to 300 kg. It is available with or without a lifting platform. Two lidars and drive wheel suspension ensure stable driving around the factory.
- 300 kg load capacity
- Version with or without a lifting platform
- Two lidars with 25 m range
- Drive wheel suspension
Specifications
Technical data
| General | |
|---|---|
| Model designation | ABOT11B |
| Dimensions (L × W × H) | 804 × 590 × 317 mm |
| Weight | approx. 65 kg |
| Material | sheet metal |
| Display | 7-inch, 1024 × 600 |
| Processor | RK3566 |
| Performance | |
| Maximum load capacity | 300 kg |
| Lifting platform | optional |
| Speed | 0.1–1 m/s |
| Navigation accuracy | ±10 cm |
| Wheels | 4 swivel wheels, 2 drive wheels of 5.5 inches |
| Lidars | 2 × 25 m |
| Battery | |
| Battery | 38.4 V / 27 Ah |
| Runtime | 8 h fully loaded, 25 h unloaded |
| Charging time | approx. 6 h |
| Adapter | AC input 110–240 V; output 43.2 V / 5 A |
Manufacturer data. We reserve the right to make changes without prior notice.
